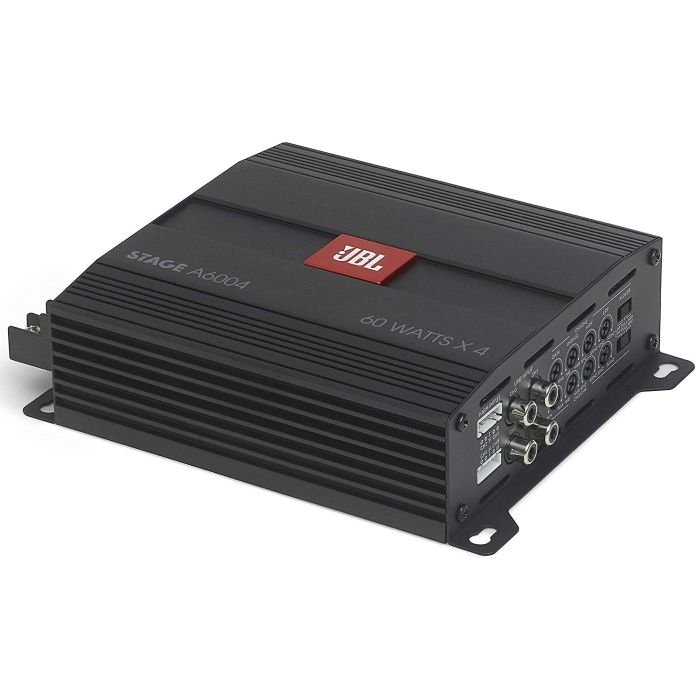

JBL Stage A6004

AMPLIFICATOR AUTO PE 4 CANALE, 560W

4 X 60W RMS in 4 ohmi
4 X 70W RMS in 2 ohmi
140W RMS in punte la 4 ohmi
Putere maxima: 560W


Caracteristici tehnice:

Operating voltage 9 – 16V
RMS power @ 4 ohms 60W
RMS power @ 2 ohms 70W
RMS bridged power @ 4 ohms 140W
Total peak power 560W
Frequency response 20Hz – 20kHz @ -1dB
THD + N at rated power (20Hz – 20kHz) <1%
Line-in signal-to-noise ratio (reference to 1 watt) >75dB
Maximum high input signal level 12V
High input maximum sensitivity 0.5V
Maximum line input signal level 5V
Line input maximum sensitivity 0.2V
Quiescent current draw <1.2A
Fuse size 2 x 15A
Dimensions (H x W x L) 50 x 145 x 193.6mm
Weight 1.381kg
