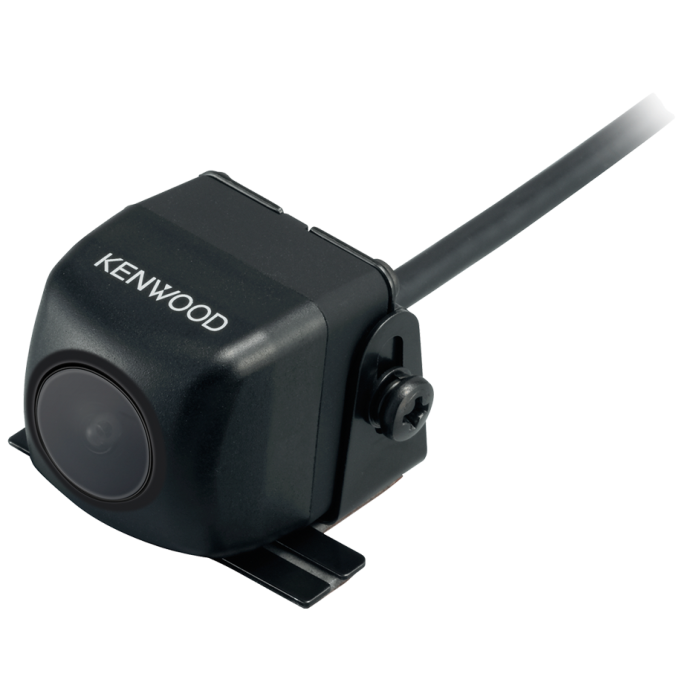

Kenwood CMOS-130 Camera Marsarier Universala

Camera universala pentru mers inapoi


Senzor CMOS color 1/4″
380.000 de pixeli
Semnal video NTSC (RCA)
Vedere panoramică în oglindă
Unitate rezistenta la apa (iP67)
Bază flexibilă pentru montaj
Vizualizare in unghi orizontal +/- 129°
Vizualizare în unghi vertical +/- 104°
Cablu conectare (DC+video): 0.7m
Dimensiuni (Lxhxl): 23.4 x 23.4 x 23.9mm

Camera Unit

Camera Type 1/4-inch colour CMOS sensor
Effective number of pixels roughly 380000
High sensitivity Pixels Yes
Output video wide angle mirror image
Waterproof chassis Yes
Mounting system Fexible mount base
Installation positions Rear
High voltage protection Yes
Wide angle lens Yes
Focal length f: 1.12mm, F value 2.2
Horizontal Angle view +/- 129°
Vertical Angle View +/- 104°
Illumination range approx. 0.9 to 100000 lux
Iris System Electronic
White balance Automatically
Scanning System Interlace
Synchronizing System Internal
Video output level 1Vpp, 75Ω
Video signal format NTSC (Mirror view)
Connection cable (DC+video) 0.7 m
General Specifications

Operating voltage 14.4V (9 ~ 16V Allowable)
Maximum Current Consumption 0.06A
Dimensions (WxHxD) 23.4 x 23.4 x 23.9mm
Weight 21 gr.
Instruction Manuals ENG/FRE/GER/DUT/ITA/SPA/POR
Accessories

Bracket yes
Screws (Parker-type) Ø 2.5 x 10mm, 1 pieces
Grommet Yes
