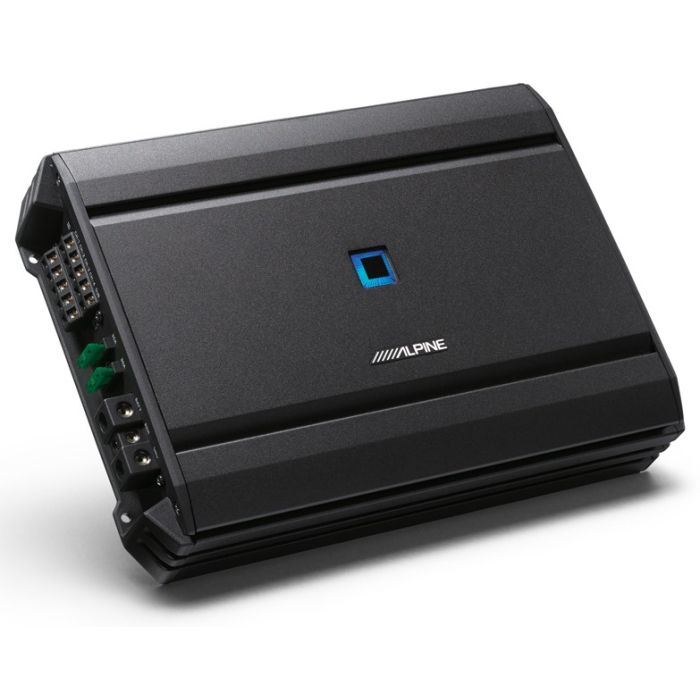

Alpine S-A55V

Amplificator Auto cu 5 Canale, putere Maxima 1100W


Alpine introduce noile amplificatoare din seria S – o potrivire perfectă cu difuzoarele din seria S. Oferă o calitate excelentă a sunetului în gama lor de preț.
Amplificatoarele din seria S sunt disponibile în configurație mono, pe 4 și 5 canale.
Compact și puternic: noul amplificator digital permite o putere de ieșire ridicată, păstrând în același timp o amprentă mică. S-A60M măsoară doar 286 mm lățime x 204 mm lungime pentru o instalare ușoară în aproape orice vehicul.


Caracteristici tehnice

Install

Terminal Layout: One side
Small footprint for easy installation
Screw terminals (for speaker and power cables)
Heavy gauge power terminals (AWG 4)
General

Amplifier Type: Class-D (Digital)
Channel Design: 5/4/3 Channel
Thermal Management Control
Top Mounted LED Power/Status Indicator
Speaker Level Input with remote turn on
Crossover: Adjustable Low-pass (LPF) / High-pass Filter (HPF)
Gain Control: Adjustable
Bass EQ (subwoofer channel)
Bass Control: Remote Bass Control (RUX-KNOB2) Ready
SPECIFICATIONS
Max Power Output Ratings

Total Max Power: 1100W
RMS Power Ratings

Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 4 x 60W + 1 x 300W
Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 4 x 40W + 1 x 200W
Bridged into 4 Ohms, 14.4V (≤1%THD+N): 2 x 120W
Sound Tuning

Crossover: Variable LPF, 50-400Hz (-12dB/oct )
Crossover: Variable HPF, 50-400Hz (-12dB/oct )
General

Power Requirements: 14.4 V.DC (9 – 16 V allowable)
Input Sensitivity (RCA Input): Hi: 0.5 – 10 V Lo: 0.2 – 4.0 V
High Level Input with automatic power on
Cable size: Power Cable AWG 4, SPK Cable AWG 12
Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-1/2/3/4: 10Hz – 30kHz
Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-5: 10Hz – 400Hz
THD+N (@ 10W into 4 ohms): <0.03%
THD+N (@ 50W into 4 ohms): <0.07%
Damping Factor: Channel 1/2/3/4: >100, Channel 5: >750
Signal to Noise (@ 50 Watts into 4 Ohms): >98dB
Weight: 2.9 kg
Dimensions

Heat Sink (WxHxD) mm: 286 x 58 x 204
