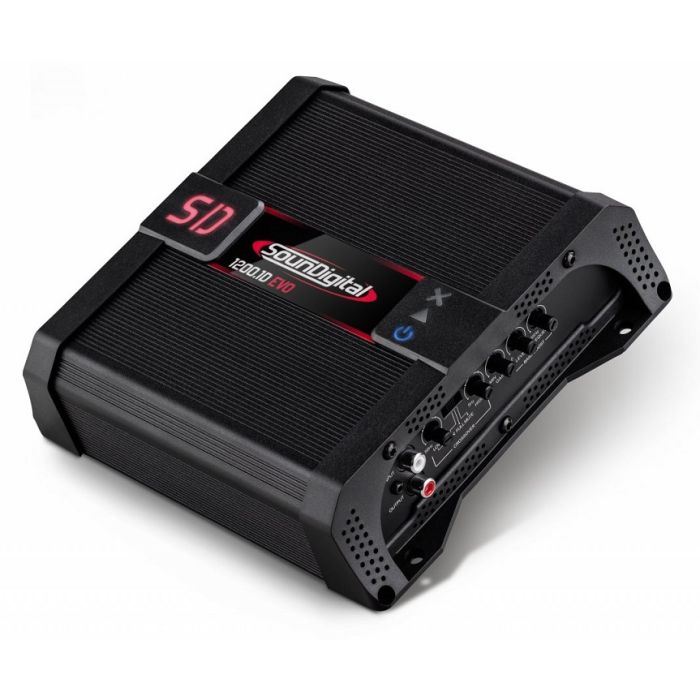

Amplificator Auto SounDigital 1200.1D EVO, Clasa D, 1 Canal, 1200W RMS

Amplificatorul auto Soundigital 1200.1 D EVO este un amplificator monobloc, clasa D, full range. Este echipat cu un filtre variabile. Amprenta extrem de mica, util pentru amplificarea unui subwoofer sau a unor difuzoare full range. Disponibil in doua variante, stabil la 1 Ohm sau la 2 Ohm.

1200.1D 1Ω
Power @ 12.6V @ 1Ω: 1 x 1200 W RMS
Power @ 12.6V @ 2Ω: 1 x 660 W RMS
Power @ 12.6V @ 4Ω: 1 x 363 W RMS
Power @ 14.4V @ 1Ω: 1 x 1567 W RMS
Power @ 14.4V @ 2Ω: 1 x 862 W RMS
Power @ 14.4V @ 4Ω: 1 x 474 W RM
1200.1D 2Ω
Power @ 12.6V @ 2Ω: 1 x 1200 W RMS
Power @ 12.6V @ 4Ω: 1 x 660 W RMS
Power @ 14.4V @ 2Ω: 1 x 1567 W RMS
Power @ 14.4V @ 4Ω: 1 x 862 W RMS
Operating Voltage: 9V – 16V
Current Draw (Music): 63A
Current Draw (Max): 127A
THD + N – (10% Rated Power): 0.008%
Damping Factor: >1000
SNR: 99dB
Frequency Response: 5 Hz – 50 kHz
Crossover HPF: 5 Hz – 40 Hz (12 dB/oct)
Crossover LPF: 50 Hz – 500 Hz (24 dB/oct)
Bass Boost: 0 – 12dB
Bass Boost Range 35Hz – 70Hz
Recommended Fuse: 60A (Music) / 125A (SPL)
Dimensions (L x W x H): 7.48 x 7.09 x 2.2 in
