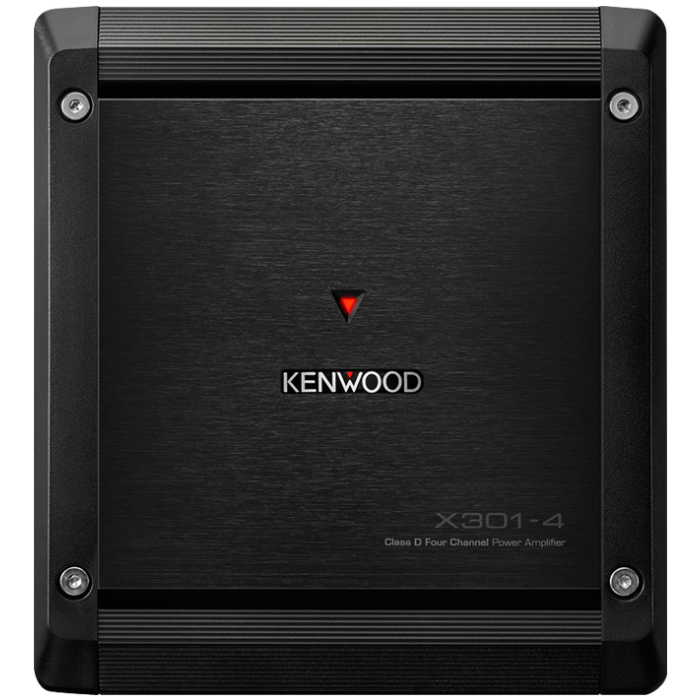

Kenwood X301-4

Specificatii Tehnice


Amplificator Auto cu 4 Canale
Seria X, D-class Amplificator
Putere Nominala(RMS):
4 x 50 W (4 ohmi)
4 x 75 W (2 ohmi)
2 x 150 W (4 ohmi)
Putere Maxima : 550W
Distorsiuni THD < 0,01 % (1 kHz)
Raspuns in frecventa : 20Hz ~ 50000Hz
Raport semnal/zgomot : 100dB

Filtru High-Pass : 50~200Hz (12dB/oct)
Filtru Low-Pass : 50~200Hz (24dB/oct)
Bass Boost Circuit : 40Hz, 18dB (B-Channel)

Sensibilitate intrare : 200mV - 5V
Stabil in 2 ohmi
Pornire Soft-Start
Intrare High level
Protectie la supra-voltaj, scurt-circuit, inversarea polaritatii si supra-incalzire
Sigurante : 1 x 25A
Greutate : 1,3 Kg
Dimensiuni : 170 x 55 x 187 (mm)
