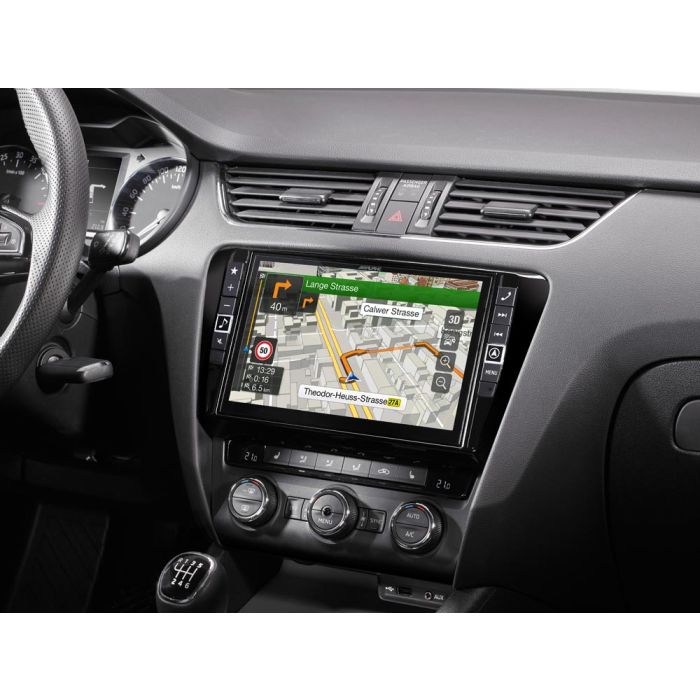

Alpine introduce acest sistem proiectat exclusiv pentru modelul Skoda Octavia 3 (Model 5E 2012 și mai nou). Modelul X901D-OC3 oferă proprietarilor de Octavia acces la cele mai recente compatibilitati media, tehnologie de ultima ora la sistemul de navigație și calitate excelenta a sunetului Alpine. Toate componentele sistemului sunt concepute pentru a se potrivi perfect in locatiile de instalare existente și  se integreaza perfect cu sistemele electronice ale vehiculului.
    Ecran de 9" cu touch screen - este cel mai mare ecran pentru bordul de Octavia 3 de până în prezent, cu care transformați panoul de bord într-o experiență cinematografică de excepție. Acest ecran de dimensiune foarte mare vă va uimi prin calitatea geniala a imaginilor!
    Butoanele comenzilor de pe volan - Sistemul Alpine se poate conecta la butoanele comenzilor de pe volan. Veti avea control deplin la volum, telefon, piese audio înainte/înapoi și multe alte comenzi. Puteți activa chiar și Siri ( control vocal ) dacă aveți iPhone-ul conectat la sistem ( in partea dreapta de la volan ).
    Ecranul mic din panoul de bord este conectat la sistemul Alpine și poate afișa numele posturilor radio, titlul melodiilor și informații despre artist, nume apelant, săgeți de navigare ( turn-by-turn ) și multe altele.
    Senzori de parcare - Sistemul de senzori de parcare originali se poate conecta la ecranul Alpine ( cu trecere automată pe mut a muzicii atunci când vă parcați mașina ).
    Camera pentru mers inapoi - În cazul în care Octavia 3 a dvs. are camera pentru mers înapoi instalata din fabrica, acesta poate fi pur și simplu conectata la sistemul Alpine. Camera se activează automat la cuplarea în marșarier. Dacă autovehiculul nu este echipat cu camera de mers înapoi originala, vă recomandăm sa instalati una de la Alpine HCE-C252RD sau HCE-C127D cu kit de instalare (KIT-R1AU).
    Port USB/AUX - X901D-OC3 include un cablu special care conectează portul USB/AUX din consola centrala cu sistemul Alpine pentru a menține acești conectori utili. (Modelul Octavia 2016 cu SmartLink poate necesita un cablu suplimentar).
    Ecranul radio la Skoda Octavia 3 este utilizat pentru afișarea și setarea mesajelor de avertizare, cum ar fi nivelul scăzut al uleiului de motor.
    X901D-OC3 vă oferă feedback vizual pentru temperatura selectată de șofer și copilot, starea AC, nivelul încălzirii scaunelor, ventilația selectata și multe altele. Acest ecran va apărea automat pentru câteva secunde atunci când oricare dintre setările numite este modificată pentru a oferi informatii șoferului.
    Optional DVD player - Actualizați sistemul Alpine cu posibilitatea de redare DVD și CD. DVE-5300 ( se vinde separat ) de dimensiuni 1 DIN, se poate instala oriunde. Acesta folosește tehnologia HDMI pentru o calitate uimitoare a imaginii și poate fi controlat în totalitate de pe ecranul tactil.


Manuale:

im_x901d-oc3_en.pdf
Caracteristici tehnice:

Tuner

    Memory Presets: Preset Stations (FM: 24 / MW: 6 / LW: 6)
    Memory: Auto Memory
    Seek Mode: Local / DX Selection

RDS

    RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT

DAB Tuner

    DAB+ Tuner Built-in
    DAB+/DMB Supported
    DAB+ Slideshow Service
    DLS (Dynamic Label Service)
    DAB Service Following
    RDS Fallback (where available)
    Service Preset: 18 Preset Memory
    Auto Ensemble/Service Memory
    Service Search Function
    PTY Search Function
    Alphabet Search Function
    Antenna Power Supply Selection

BLUETOOTH®

    Built-in BLUETOOTH® Module
    Wide Band Speech Technology
    HFP (Hands-Free Profile) Compatible
    Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
    Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
    Advanced BLUETOOTH® Technology
    Connection: SSP (Simple Secure Pairing) Supported
    Individual Profile Connection Hands Free Phone and Music Streaming
    Phone Book: Phone Book Synchronization
    Speed Dial: 4 Preset Memory (per phone)
    Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
    Device Name Display
    Auto Answer
    Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
    Redial Function
    Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
    DTMF (Touch-Tone) Function
    Signal Strength Indicator
    Battery Level Indicator
    Menu Language Selection: 24 Languages
    Firmware Updatable

Made for iPod® / iPhone®

    Compatibility for iPod/iPhone: Made for iPod touch 5th/4th/3rd/2nd/1st Gen., iPod nano 7th/6th/5th/4th/3rd/ Gen., iPod classic 160GB/120GB/80GB, iPod with video, iPhone 6 and 6 Plus, iPhone 5S, iPhone 5C, iPhone 5, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G
    Connection: KCU-461iV / KCU-471i Required (Sold separately)
    Music & Video Playback Compatible with KCU-461iV only
    Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
    Alphabet Search
    Artwork Display
    Direct Up / Down: Playlist / Artist / Album / Genre / Composer
    M.I.X. (Shuffle) Play: Song, Albums, All
    Repeat
    Battery Charging

Navigation Function

    Map Coverage: 48 Countries (Western and Eastern Europe)
    Menu Language: 29 Languages
    Voice Guidance Language: 29 Languages for Voice Guidance, 15 Languages for Text-to-Speech (TTS)
    Advanced Address Search
    Post Code Search
    Free Form Search
    Partial Name Search
    Advanced POI Functions
    Smart Routes: Smart Routes using historic traffic patterns
    Advanced Route Planning
    Eco Route Search
    7 Alternative Route Recommendation
    Advanced TMC Mode
    Map Display Mode: 2D Heading Up, 2D North Up, 3D
    3D City Mode: 3D Building/Icon Display
    Elevation Map Display: 3D maps with elevation mode
    3D Motorway Junction View: Junction View with Sign Post
    Drive Lane Suggestion
    Tunnel Mode
    Highway Mode
    Voice Guidance Mixing
    Text-to-Speech
    Direct Phone Call from POI data
    3 Positioning Sensors: GPS, Gyroscope, Vehicle Speed Pulse

USB Media Connection

    USB Connection: includes a special cable that connects the USB / AUX port
    Music and Video Playback: FLAC/MP3/WMA/AAC/AVI/MP4/MKV Playback
    File / Folder Name Search
    Tag Info Search
    Folder Up / Down
    M.I.X. Random Play
    Repeat

Sound Tuning

    Bass Engine SQ
    Bass Engine™ Pro
    Subwoofer Level Adjustment
    Subwoofer Phase Select
    4V High Voltage PreOut KTX-PRE1 Required (Sold separately)
    Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
    Dual HD EQ (9-band Parametric Equalizer front/rear)
    6 Channel Digital Time Correction
    Digital Crossover Setting
    Customized Sound Setting by Car Type
    MediaXpander HD
    Application Volume Level Setting
    Sound Setting Data Download
    Easy, Step-by-Step Sound Customization
    Alpine TuneIt App ready

General

    Power Output: 4 x 50 W High Power Amplifier
    Advanced Power IC
    Display: 9′′ Capacitive WVGA High Resolution Display
    White LED Backlighting System
    50/50 Split Screen: Left / Right Position Changeable
    Control Type: Touch, Drag, Flick
    My Favorites Function
    Automatic Setting Change for 2 Users
    High Grade Audiophile Design
    PreOut: 3 PreOuts (4V, Front / Rear / Subwoofer) KTX-PRE1 Required (Sold separately)
    AUX-In: 1 A/V AUX Input
    Steering Wheel Remote Control Function
    OEM Sub-display Function
    Remote Control Ready
    Navigation Guidance Mix
    Camera Connection & Built-in Controls for Multi-View Cameras
    Camera Guide Line Adjustment
    Rearview Camera Display Automatic Boot-up
    Simple Mode & Info Mode Display Selection
    Visual EQ
    Live Contrast Adjustment
    Menu Language: 24 Languages (for AV / Bluetooth), 29 Languages (Navigation Menu and Voice Guidance)
    Clock
    Auto Dimmer
    Anti-theft security code
    Firmware Updatable
    Original Skoda Octavia 3 hands-free Microphone Connection
    Power Antenna Lead
    Remote Turn-On
    HDMI Input (Alpine Special HDMI connector required)
    HDMI Selector Interface KCX-630HD Ready
    Engine Start-Stop unaffected
    CAN Connection Interface Included
    Ready for optional DVD Player DVE-5300

Map & Database

    Online Map Update

Installation

    Includes installation brackets, wiring harness and CAN bus interface for complete installation.

SPECIFICATIONS

Screen

    Screen Size: 9 inch Capacitive WVGA
    LCD Type: Transparent Type TN LCD
    Operation System: TFT Active Matrix
    Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
    Illumination System: White LED Backlighting
    Effective Number of Picture Elements: 99.99%
    Colour System: NTSC, PAL

Max Power Output Ratings

    Max Power Output: 4 x 50 W

FM Tuner

    Tuning Range: 87.5 - 108.0 MHz
    Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
    50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
    Alternate Channel Selectivity: 80 dB
    Signal-to-Noise Ratio: 65 dB
    Stereo Separation: 35 dB
    Capture Ratio: 2 dB

MW Tuner

    Tuning Range: 531 - 1,602 kHz
    Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

LW Tuner

    Tuning Range: 153 - 281 kHz
    Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf

USB

    USB Requirements: USB 2.0
    Max. Power Consumption: 1,500 mA (CDP Support)
    USB Class: Mass Storage Class, Play From Device
    File System: FAT 16/32
    MP3 Decoding: MPEG-1/2 AUDIO Layer-3
    WMA Decoding: Windows Media™ Audio
    AAC Decoding: ACC-LC format ′′.m4a′′ file
    Flac Decoding
    USB Video playback (AVI/MP4/MKV file with H.264 Video and MP3/AAC Audio)
    Number of Channels: 2-Channel (Stereo)
    Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
    Total Harmonic Distortion (at 1kHz): 0.008%
    DynamicRange(at 1kHz): 95 dB
    Signal-to-Noise Ratio: 100 dB
    Channel Separation (at 1kHz): 85 dB

GPS

    GPS Antenna Type: Micro-strip Planar Aerial
    Reception Frequency: 1575.42 ±1 MHz
    Reception Sensitivity: -130 dB Maximum
    Reception Method: Parallel 12 Channels

BLUETOOTH®

    BLUETOOTH® Version: Bluetooth V3.0+EDR
    Output Power: +4 dBm Max. (Power class 2)
    HFP: HFP (Hands Free Profile)
    OPP (Object Push Profile)
    PBAP (Phone Book Access Profile)
    HSP (Head Set Profile)
    A2DP: A2DP (Advanced Audio Distribution Profile)
    AVRCP: AVRCP (Audio/Video Remote Control Profile)
    SPP (Serial Port Profile)

Sound Tuning

    Subwoofer Level Adjustment: 0 to +15
    Subwoofer Phase Setting: 0° or 180°
    BASS ENGINE SQ: 5Mode, Level 0 to +6
    HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
    HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
    HighPassFilter (Gain): -12 to 0 dB
    LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
    LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
    LowPassFilter (Gain): -12 to 0 dB
    Time Correction: 0.0 - 9.9ms (0.1ms step)
    Dual HD EQ Front + Rear
    Parametric Equalizer (Band 1): 20 - 100 Hz
    Parametric Equalizer (Band 2): 63 - 315 Hz
    Parametric Equalizer (Band 3): 125 - 500 Hz
    Parametric Equalizer (Band 4): 250 - 1k Hz
    Parametric Equalizer (Band 5): 500 - 2k Hz
    Parametric Equalizer (Band 6): 1k - 4k Hz
    Parametric Equalizer (Band 7): 2k - 7.2k Hz
    Parametric Equalizer (Band 8): 5.8k - 12k Hz
    Parametric Equalizer (Band 9): 9k - 20k Hz
    Parametric Equalizer (Gain): -14 to +14
    Application Volume Level Setting: -14 to +14

HDMI Section

    Input Format 720p/480p/VGA
    Output Format 480p

General

    Power Requirement: 14.4 V. DC (11-16V allowable)
    Pre Output Voltage (Before Clipping): 4 V / 10k ohms
    Maximum Mounting Angle: 30°

Dimensions

    X901D-OC3: Fits for Skoda Octavia 3
    Chassis Size (W x H x D) mm: 178 x 50 x 164 mm

Compatible Cars
Maker
Model
Model year
Skoda
Octavia 3 (5E)
2012 →

Interface APF-H100DY is required for cars with Canton Sound System
